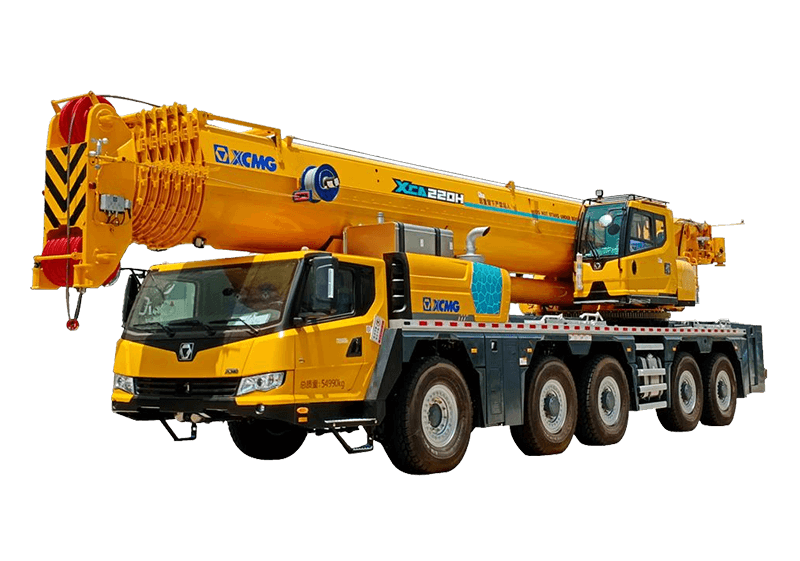

7-section extra-long main boom (72m) combined with a 5-axle high-strength chassis. Equipped with a high-power engine, ZF gearbox and heavy-duty axles, it delivers excellent power performance and supports free switching between 3-axle drive and 4-axle drive. It can carry the main boom, auxiliary winch and 12t counterweight for heavy-load transition.
| Max. load capacity(t) | 220 |
| Telescopic boom(m) | 72 |
| Number of axles | 5 |
| Item | Unit | Parameter |
|---|---|---|
| Max. load capacity | t | 220 |
| Telescopic boom | m | 72 |
| Number of axles | - | 5 |
| Max. hoist height | m | 107 |
| Max.load moment | kN.m | 6664 |
| Drive engine model | - | WP13.530E501 |
| Drive engine power | kw | 390 |
| Drive/Steering | - | 10×6 |
| Driving speed | km/h | ≥80 |
| Dead Weight in Travel State | kg | 54990 |
| Dimensions（length×width×height） | mm | 15350×3000×3950 |
| Emission standard | - | EURO Ⅲ/Ⅴ |
