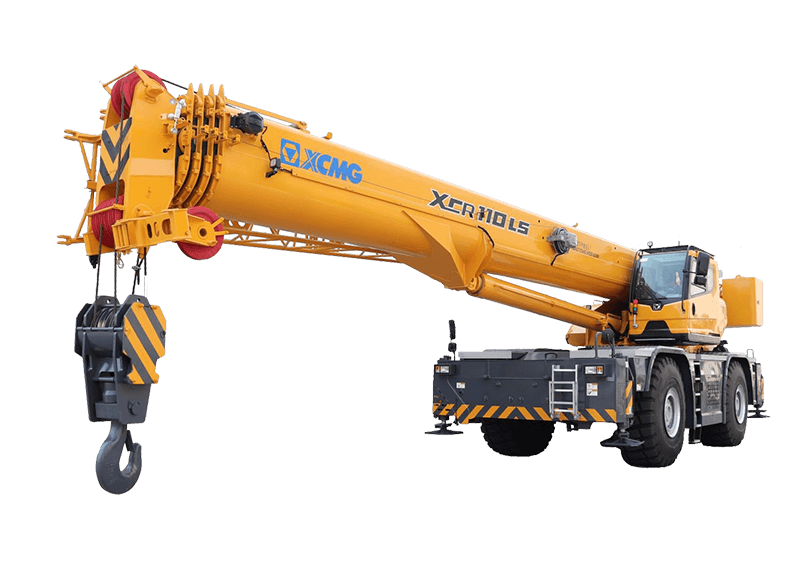

XCR110L5 is a 2-axle 110 t rough-terrain crane with strong boom length and the stronger lifting performance. It has a 5-section 51 m boom and a 2-section 16 m fixed jib, with a lifting height of 64.2m under fully extended boom and jib.
| Max. load capacity(t) | 110 |
| Telescopic boom(m) | 51 |
| Number of axles | 2 |
| Item | Unit | Parameter |
|---|---|---|
| Max. load capacity | t | 110 |
| Telescopic boom | m | 51 |
| Number of axles | - | 2 |
| Max. hoist height | m | 64.2 |
| Max.load moment | kN.m | 3057.6 |
| Drive engine model | - | QSB6.7-C260-30 |
| Drive engine power | kw | 194 |
| Drive/Steering | - | 4×4 |
| Driving speed | km/h | ≥35 |
| Dead Weight in Travel State | kg | 58910 |
| Dimensions（length×width×height） | mm | 15288×3300×3893 |
| Emission standard | - | EUStage IIIA |
