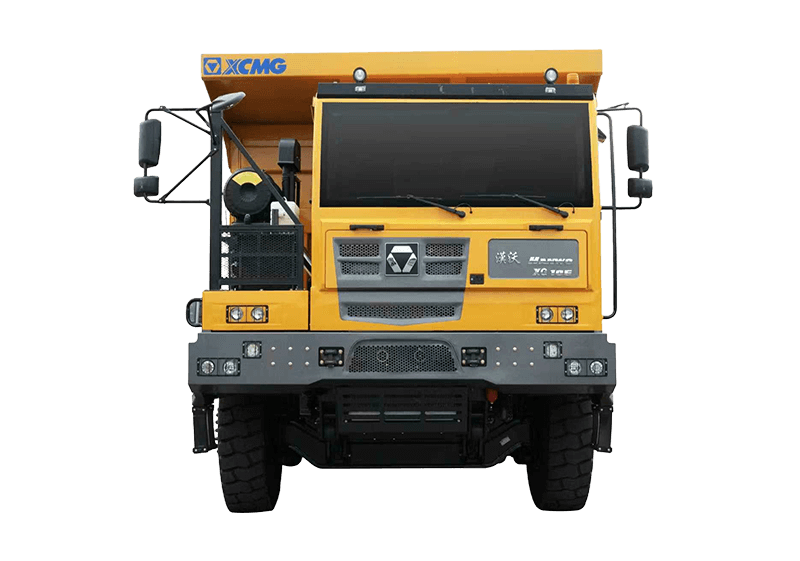

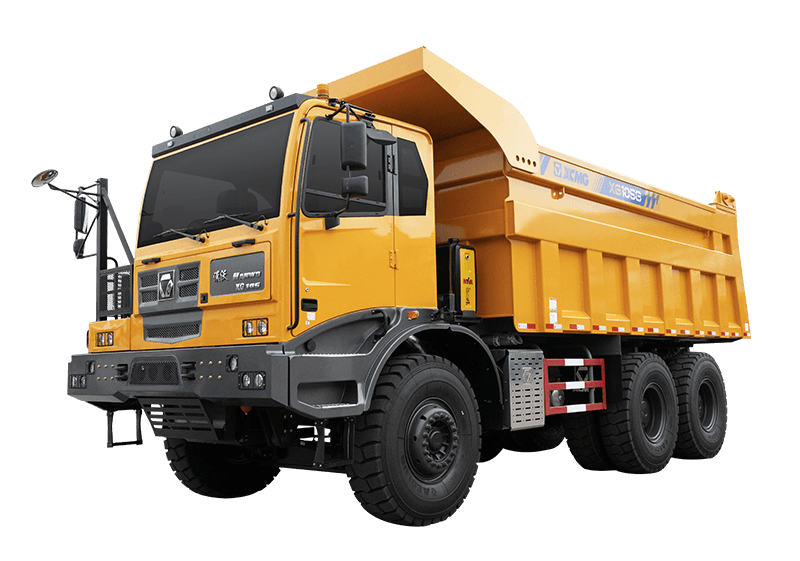

XGA105
Wide-body Mining Dump Truck

The XGA105 integrates three core components: the Weichai 530hp engine, Allison transmission, and Hande axle, forming a premium powertrain. Its highlights are: Firstly, efficient synergy and exceptional power output.

The high-torque engine works seamlessly with the intelligent automatic transmission, minimizing drive loss. It ensures swift heavy-load starts and confident performance on mountain roads and high altitudes. Secondly, superior reliability, ease of use, and cost savings.

The durable configuration ensures low failure rates and extended maintenance intervals, maximizing operational uptime and significantly reducing total lifecycle costs.

Driving Type 6×4
Payload (kg) 75000
Curb weight (kg) 35000
PARAMETERS
Item Unit Parameter
Driving Type - 6×4
Payload kg 75000
Curb weight kg 35000
Max. Speed km/h 40
Max. Gradeability - 0.322
Min. Turning Radius m 12
Overall Dimensions(L×W×H) mm 9460×3760×4400
Wheelbase mm 4000 /1750
Min. Ground Clearance mm 380
Approach /Departure Angle - 33°/50°
Inside Body Dimension mm 6400×3500×1700
Standard Flat Loading 38
2:1 Stacking 42
Engine Model - WP13G530E470
Rated Power kw/rpm 390/2100
Max.Torque N.M 2300
Transmission Model - Allison 4800WBD Automatic
Axle(F/M/R) t 25/40/40
Suspension Type(F/R)(PCS) - Oil-Gas Spring Suspension(F)15 PCS Leaf Springs (R)(30mm×15)
Tyres - 16.00R25
