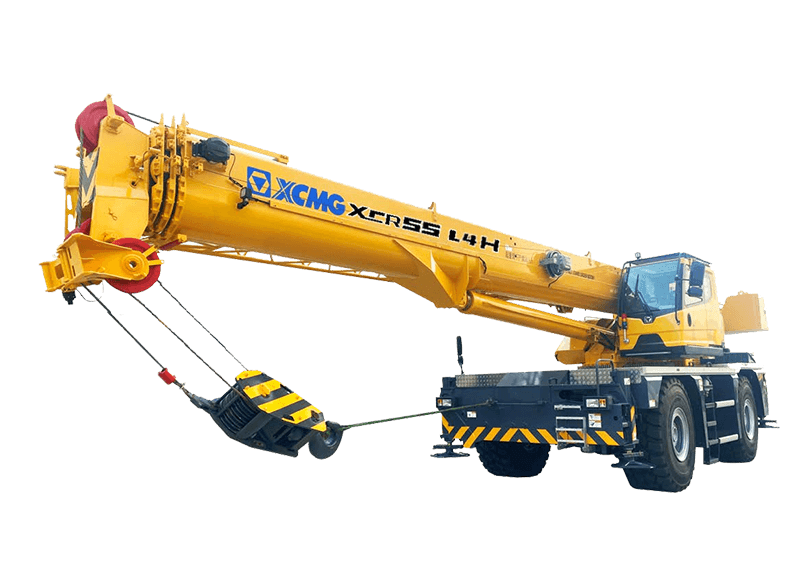

XCR55L4H is a 2-axle 55 t rough-terrain crane with strong boom length and the stronger lifting performance. It has a 4-section 36.5 m boom and an 9 m fixed jib, with a lifting height of 43.6m under fully extended boom and jib.
| Max. load capacity(t) | 55 |
| Telescopic boom(m) | 36.5 |
| Number of axles | 2 |
| Item | Unit | Parameter |
|---|---|---|
| Max. load capacity | t | 55 |
| Telescopic boom | m | 36.5 |
| Number of axles | - | 2 |
| Max. hoist height | m | 43.6 |
| Max.load moment | kN.m | 2033.5 |
| Drive engine model | - | QSB6.7-C220-30 |
| Drive engine power | kw | 164 |
| Drive/Steering | - | 4×4 |
| Driving speed | km/h | ≥40 |
| Dead Weight in Travel State | kg | 39582 |
| Dimensions（length×width×height） | mm | 13700×3000×3590 |
| Emission standard | - | EUStage IIIA |
