GR180
  • GR180
GR180

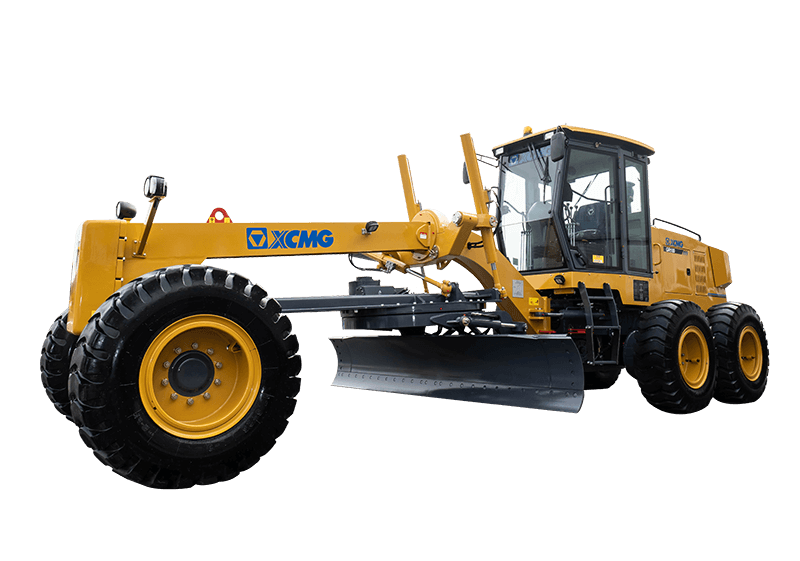

Motor Grader

GR180 motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc., also can be used in heavy duty and mining areas. The machine features compact structure and high reliability, is the indispensable construction machinery for national defense projects, urban and rural roads and other building construction and water conservancy construction, farmland improvement, etc.

Engine model SC8D190G2B1
Rated power/speed(kW/rpm) 140/2200
Machine dimension/standard(mm) 8900×2625×3420
PARAMETERS
Item Unit Parameter
Engine model - SC8D190G2B1
Rated power/speed kW/rpm 140/2200
Machine dimension/standard mm 8900×2625×3420
Machine weight/standard kg 15400
Drive speed, forward km/h 5/8/11/19/23/38
Drive speed, reverse km/h 5, 11, 23
Traction force f=0.75 kN ≥79
Maximum gradeability % ≥25
Minimum turning radius m 7.3
Blade Length x Height mm 3660 x 610
