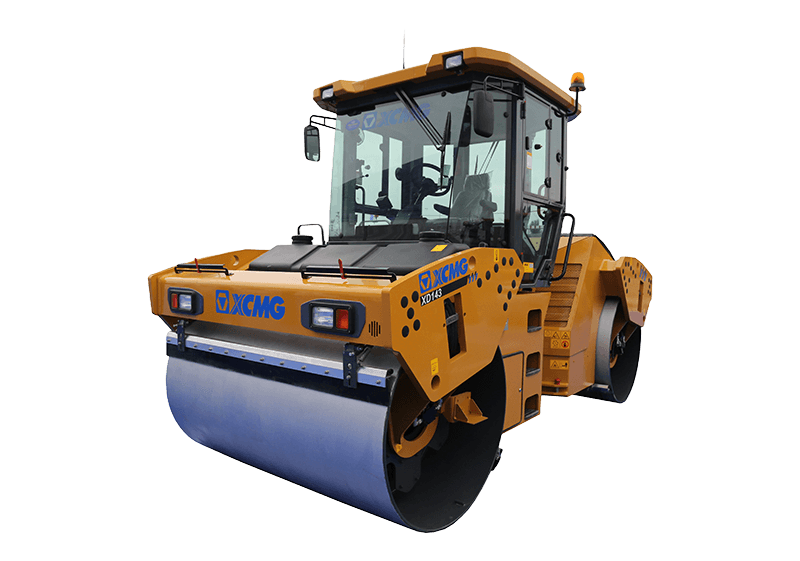

XD143 vibratory roller is designed for the compaction of asphalt pavement, asphalt layer of different materials and different thickness, especially suitable for roads, parking lots, airports and other large engineering projects, can also be used for compaction of road bedand sub-base material, wide application scope.
| Operating weight(kg) | 14000 |
| Static linear load(N/cm) | 322 |
| Vibration frequency(Hz) | 45/55 |
| Item | Unit | Parameter |
|---|---|---|
| Operating weight | kg | 14000 |
| Static linear load | N/cm | 322 |
| Vibration frequency | Hz | 45/55 |
| Nominal amplitude | mm | / |
| Excitation force | kN | 158/98 |
| Drum width | mm | 2130 |
| Theoretical gradeability | % | 35 |
| Model | - | Cummins |
| Rated power | kW | 119 |
| Rated speed | r/min | 2200 |
| Dimensions L×W×H | mm | / |
